| Power Range 162kw-352kw | ||||||||
| Model | 6D10G205 | 6D10G240 | 6D10G288 | 6D12G288 | 6D12G315 | 6D12G400 | D2765G350 | D2765G370 |
| Type | water-cooling,in-line,4-stroke,direct injection and dry liner | |||||||
| Rated Output(kw/HP) | 205/280 | 240/326 | 288/392 | 288/392 | 315/428 | 294/400 | 350/476 | 370/503 |
| r\min | 1500 | 1500 | 1800 | 1500 | 1800 | 2150 | 1500 | 1500 |
| Cylinder No. | 6 | |||||||
| Firing Order | 1-5-3-6-2-4 | |||||||
| Intake Type | TCI | |||||||
| Compression Ratio | 16:1 | 17:1 | ||||||
| Bore*stroke(mm) | 126*130 | 126*155 | 126*166 | |||||
| Displacement | 9.7L | 11.6L | 12.6L | |||||
| Governor | Mechanical 5 % | |||||||
| Fly wheel NO. | SAE 1# | |||||||
| Fly wheel housing NO. | 14" | |||||||
| Net weight(kg) | 1210 | 1290 | 1330 | |||||
Show details:
Cylinder liner: Yangzhou Wutingqiao
Piston: Hunan Jiangbin (military enterprises), ≥350KW using Germany Mahler piston
Piston ring: Anqing (Japan, USA and China tripartite joint venture )
Crankshaft:Forged steel, instead of casting material , forged steel crankshaft with high strength.

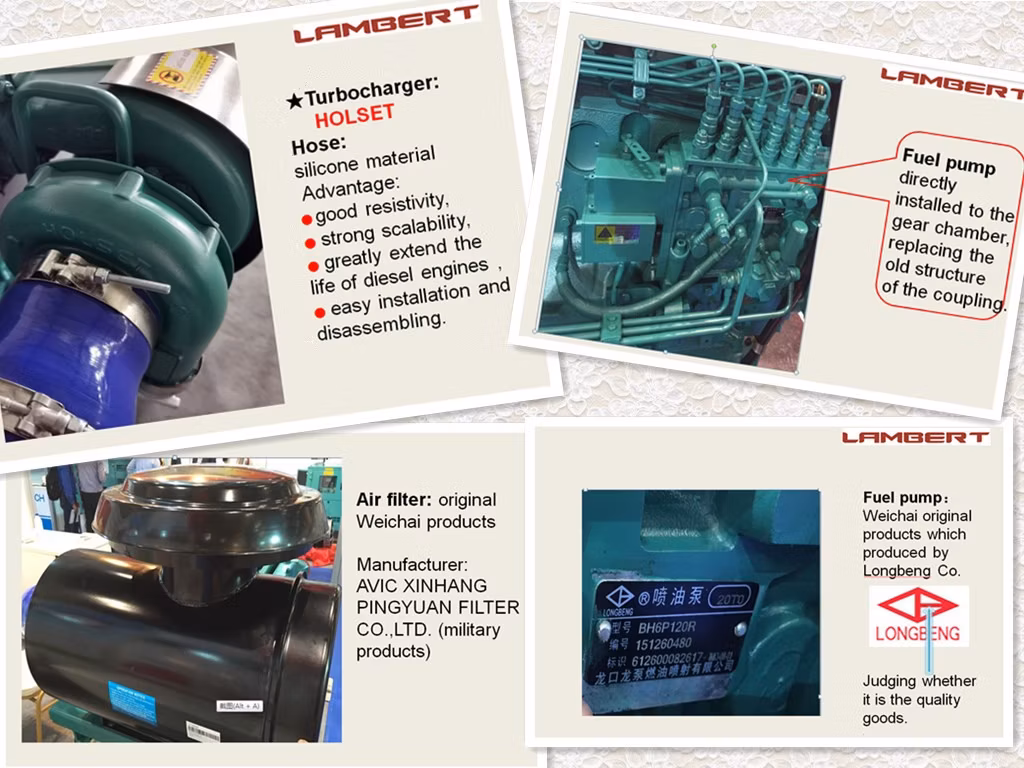

Other components, see the picture below, are well-known brands:
* Gates Belt
* Holset Turbocharger...
This is our product certificate, which represents the stability of our product quality.
* Our company has been participating in international exhibitions around the world. This is the photo of our exhibition in Dubai in previous years. We will go there again in March next year.
* At present, our company has three advanced assembly lines with supporting equipments and auxiliary facilities, two of which are assembly lines and one is packaging line. The assembly lines have realized automatic operation mode. Experienced and skilled operators perform on-site operations in accordance with process control procedures and operating instructions to ensure products meet customer requirements. Assembly lines with reasonable design and united work team.
* If you have any need, please contact our sales staff - Alisa, looking forward to working with you!
